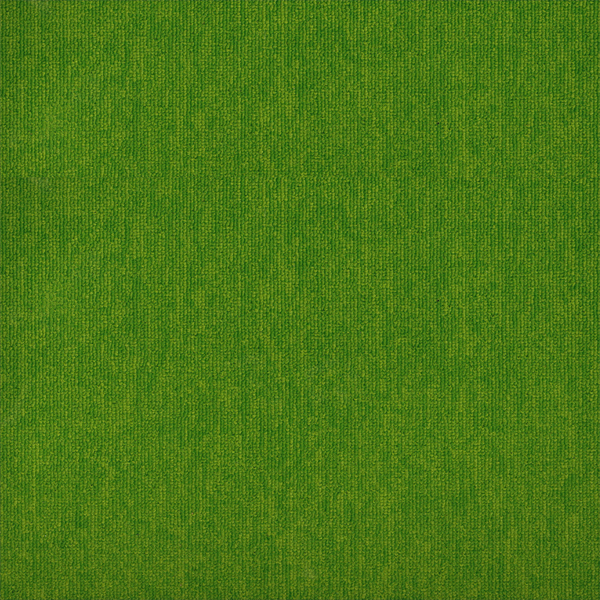

MYS-4 Carpet Tiles



MYS-4 Specifications
Construction1/10” Level Loop Pile
Yarn Composition100% Solution Dyed Olefin
Tufted Pile WeightCa. 577 g/m² (17 oz/yd²) (+/- 10%)
Total WeightCa. 2440 g/m² (72 oz/yd²)
Pile HeightCa. 3 mm (+/- 0.5 mm)
Total HeightCa. 5 mm (+/- 0.5 mm)
Stitch Rate48 per 10 cm
BackingECO Back – “PVC Free”
Tile Size50 cm x 50 cm
Packing20 pcs per box (5 m²)
Performance(as tested by ITTS Inc. USA)
Stain Resistance10 (AATCC 175-2003)
Static ControlPass – Max. 4 kV (AATCC-134-1996)
Tuft BindPass – 9.8 lbs (ASTM-D-1335)
Dimensional StabilityPass – Max. 0.1% change (AACHEN)
Indoor Air Quality (V.O.C.)Pass – No VOC Detected (ASTM-D5116-10)
Impact Noise RatingΔL: 26 dB (ISO 10140)
Sound Absorptionαw 0.20 (ISO 354)
Hz 125 250 500 1000 2000 4000
αs 0.01 0.03 0.08 0.28 0.35 0.43
Flammability
– Radiant PanelPass – Class I (ASTM-E-648-06)
– Pill TestPass – 8 (ASTM-D-2859-96)
– Smoke DensityPass – Max. 450 (ASTM-E-662-06)
Colourfastness
– to lightExcellent – 5 (AATCC-16E)
– to ozoneExcellent – 5 (AATCC-129)
– to wet & dry crockingExcellent – 5 (AATCC-165)
Lifetime Anti-shock Carpet Warranty
Ideal for Medium Contract Use.
The subfloor should be dry, smooth, flat, dust-free and resistant to compression and load-bearing. Where seaming is necessary, a seam sealant must be used for all such installations. Due to dye lot variations, actual color may vary slightly from the samples. Chair pads are recommended to prevent premature wear of carpet.
Environment
The design and production of MYS-4 Tile conforms to the ISO 14001:2004 Environmental Management System and complies with environmental regulations.

As a responsible manufacturer and to minimize our carbon footprint, a majority of our excess production materials are recycled in-house resulting in a minimum of 10% recycled content in our tile backing. MYS-4 Tile does not contain any PVC in its manufactured materials and packaging.

MYS-4 Tile is an environmentally friendly “green” carpet.

Suitable
MYS-4 is an extremely affordable yet strong and durable carpet tile that fully meets the needs of today’s competitive office environment.

Due to the solid colourations of Mystic 4, the edge lines may be visible if planks of the same colour are joined next to each other. The visible edge lines are an inherent characteristic of the plank and not a defect, just as one can also see the edge lines when joining wood planks or PVC planks.

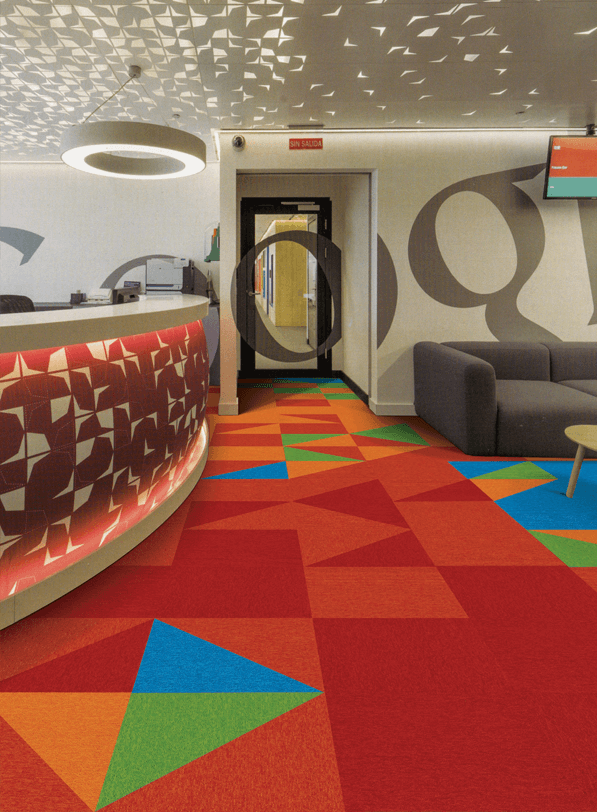

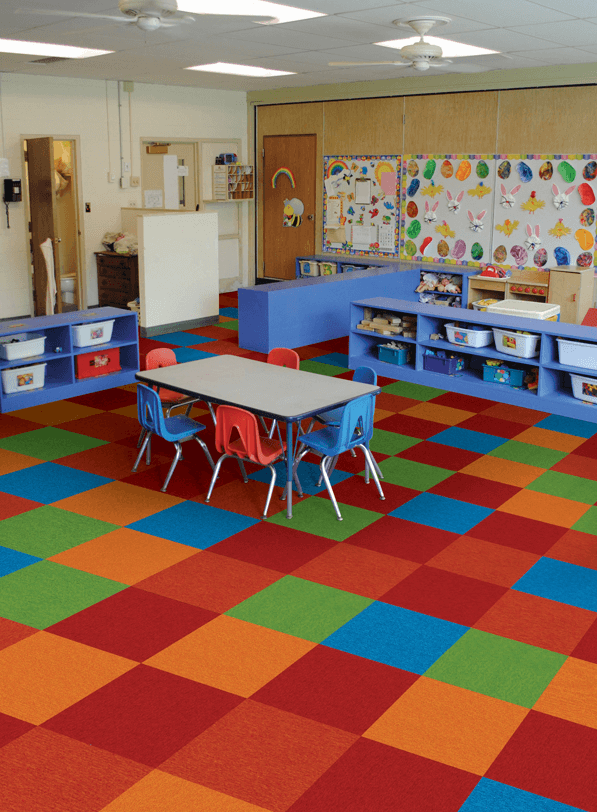

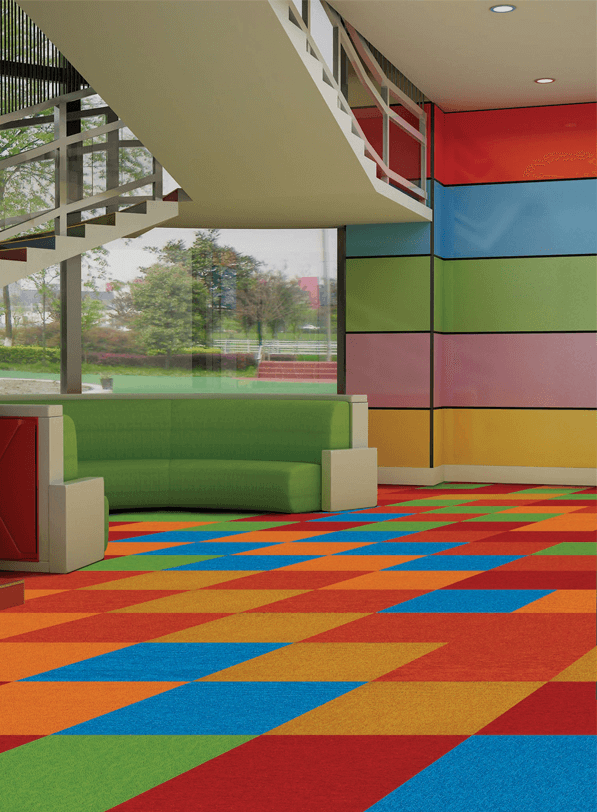

If the visual effect of the edge lines is required to be minimised, we recommend installing planks of different and contrasting colours next to each other, as can be seen in our illustrations.
