Hex Nylon Tiles

Hex Tile Specifications
Construction1/12” Multi-Level Loop
Yarn Composition100% Solution Dyed Nylon
Tufted Pile WeightCa. 678 g/m² (20 oz/yd²)
Total WeightCa. 3670 g/m² (200 oz/yd²)
Pile HeightCa. 4 mm (+/- 0.5 mm)
Total HeightCa. 7 mm (+/- 0.5 mm)
Stitch Rate39 per 10 cm
BackingEco Cushion Backing
Size – Square50 cm x 50 cm

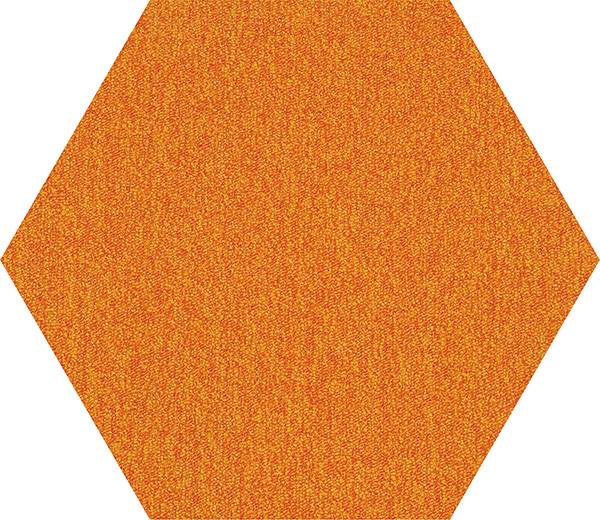

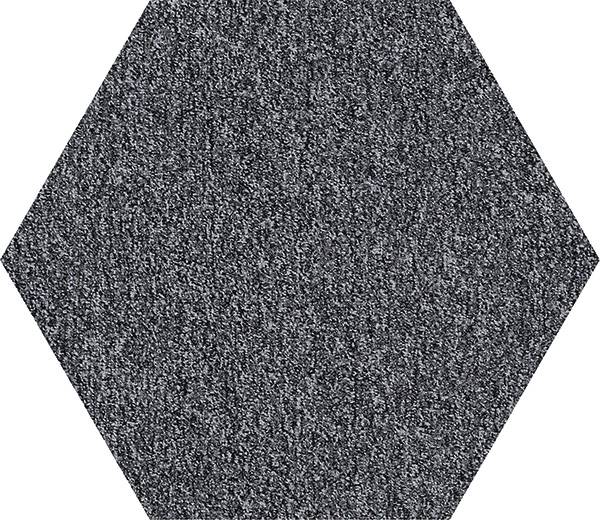

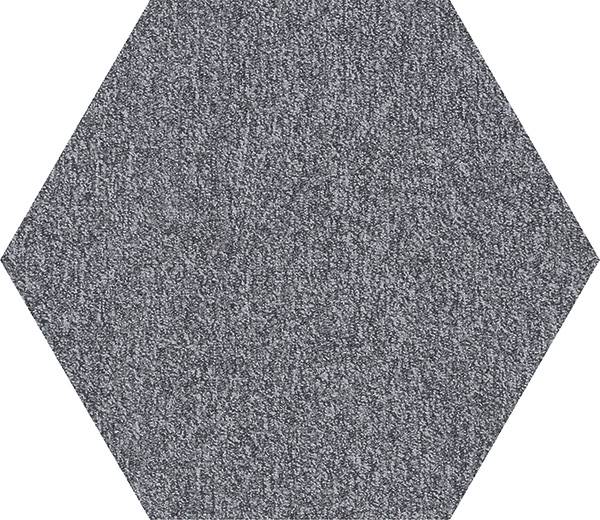

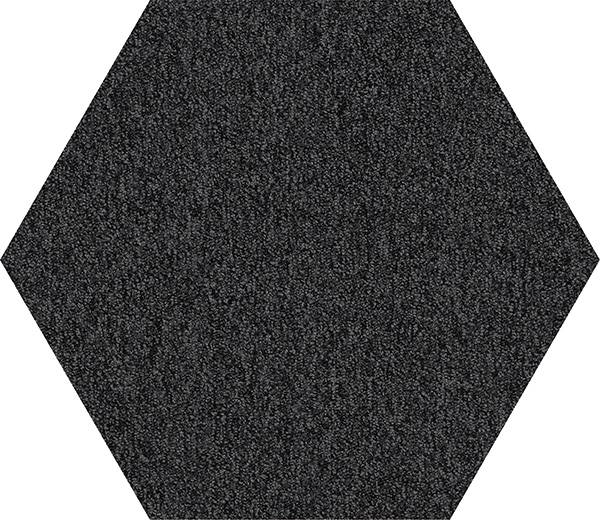

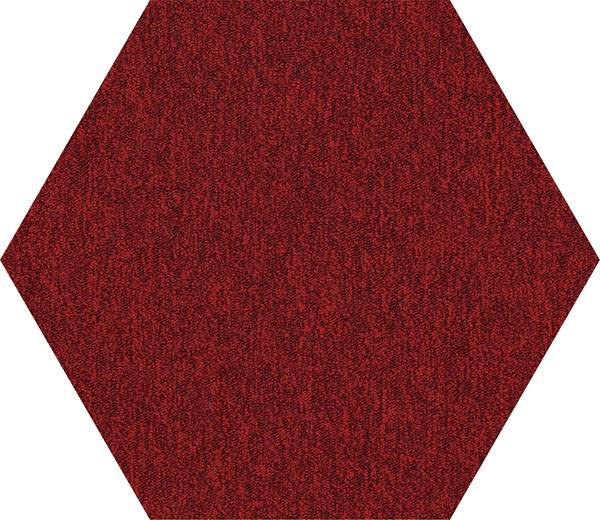

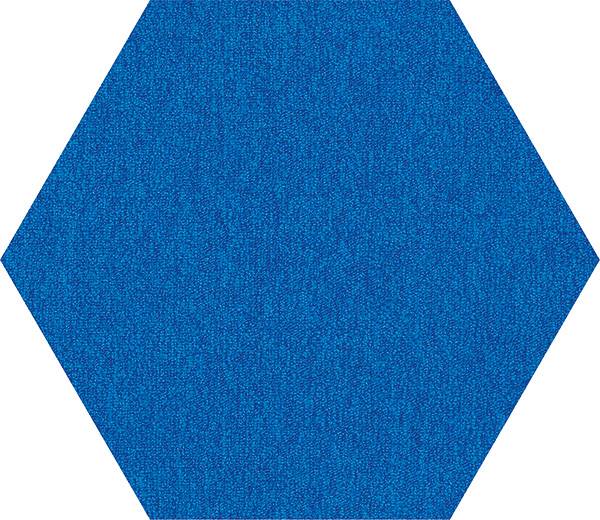

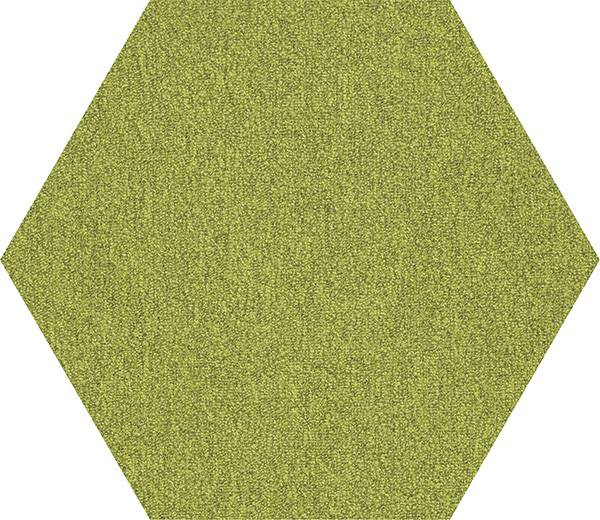

Size – Hexagon50 cm x 43.3 cm
Packing20 pcs per box (3.24 m²)
Performance (as tested by ITTS Inc. USA)
Static ControlPass – Max. 4 kV (AATCC 134-2011)
Tuft BindPass – 10.2 lbs (ASTM-D-1335)
Dimensional StabilityPass – Max. 2% change (AACHEN)
Indoor Air Quality (V.O.C.)Pass – No VOC Detected (ASTM-D5116-10)
Impact Sound InsulationΔLᴡ: 24 dB (ISO 10140)
Sound Absorptionαᴡ = 0,15 (H) (ISO 354)
Hz 125 250 500 1000 2000 4000
αs 0.00 0.00 0.05 0.25 0.25 0.35
Flammability
– Radiant PanelPass – Class I (ASTM-E-648-15e1)
– Pill TestPass – 8 (ASTM-D-2859-96)
– Smoke DensityPass – Max. 450 (ASTM-E-662-06)
Colourfastness
– to lightExcellent – 5 (AATCC-16E)
– to wet & dry crockingExcellent – 5 (AATCC-165)
– to ozoneExcellent – 5 (AATCC-129)
Lifetime Antishock Carpet Warranty
Ideal for Heavy Contract Use.
The subfloor should be dry, smooth, flat, dust-free and resistant to compression and load-bearing. Where seaming is necessary, a seam sealant must be used for all such installations. Due to dye lot variations, actual material may vary slightly from the samples. Chair pads are recommended to prevent premature wear of carpet.
Environment
The design and production of T-Hex Tile conforms to the ISO 14001:2004 Environmental Management System and complies with environmental regulations.

As a responsible manufacturer and to minimize our carbon footprint, a majority of our excess production materials are recycled in-house resulting in a minimum of 10% recycled content in our tile backing. Hex Tile does not contain any PVC in its manufactured materials and packaging.

Hex Tile is an environmentally friendly “green” carpet.
