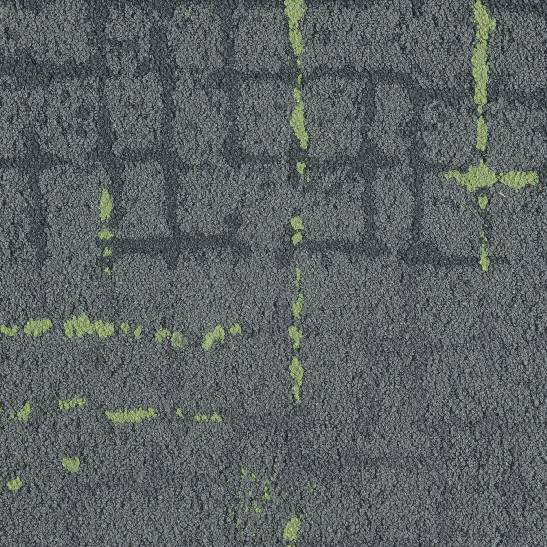

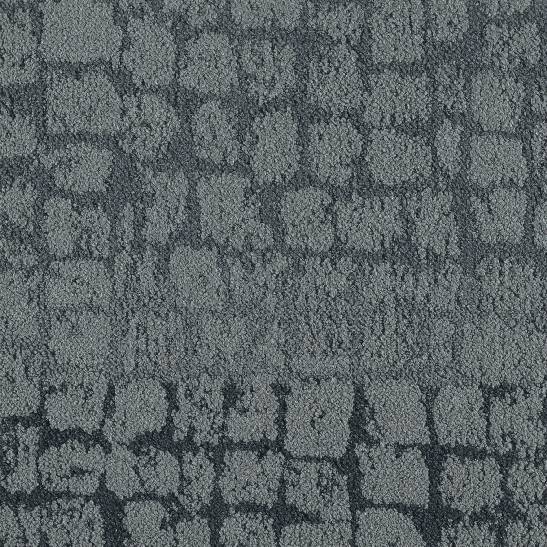

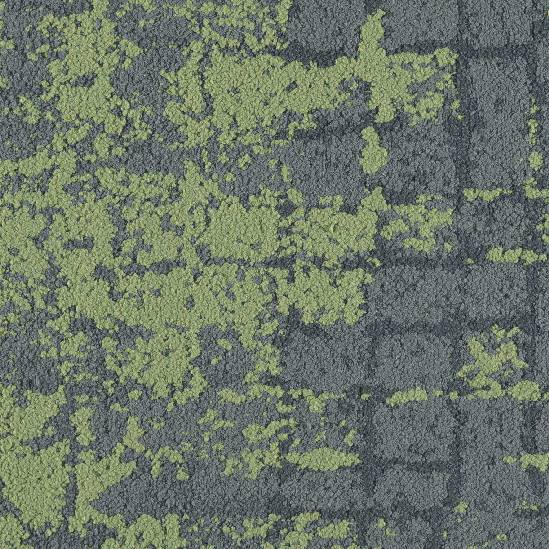

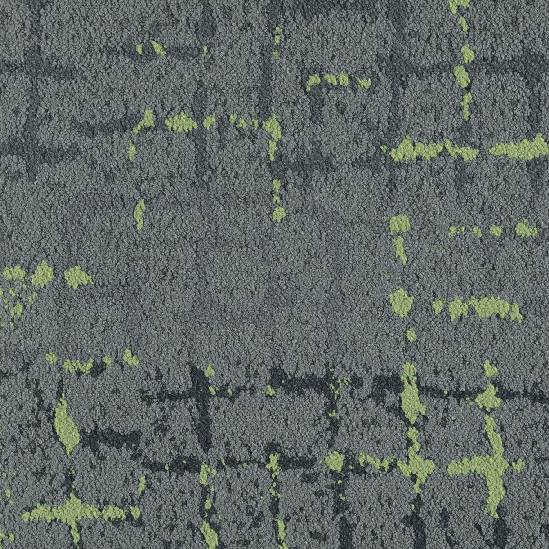

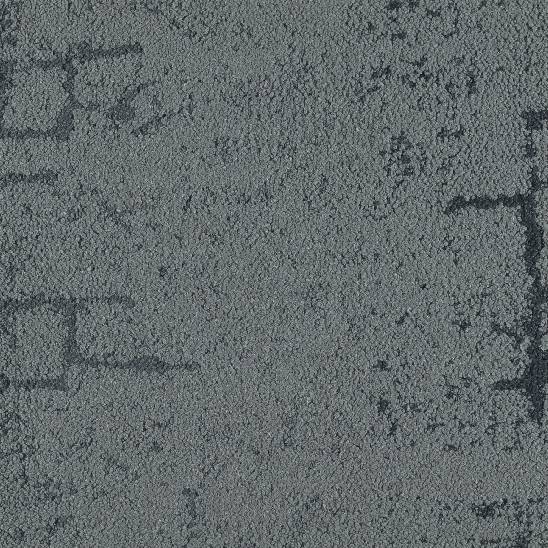

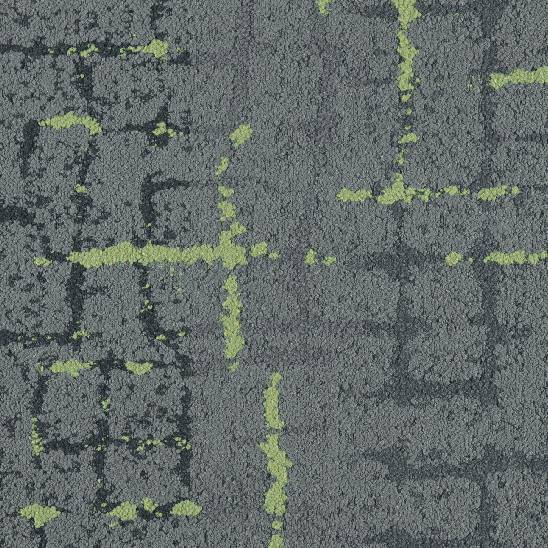

ACE Nylon Tiles

Ace Specifications
Construction1/12” Multi-Level Loop Pattern
Yarn Composition100% Solution Dyed Nylon
Tufted Pile WeightCa. 813 g/m² (24 oz/yd²)
Variable Pile HeightCa.3 mm – 6 mm
Total HeightCa. 10 mm – 13 mm
Stitch Rate38 per 10 cm
BackingEco Cushion Backing
Tile Size50 cm x 50 cm
Packing14 pcs per box (3.5 m²)
Performance (as tested by ITTS Inc. USA)
Stain Resistance8 (AATCC-175-1993)
Static ControlPass – Max. 4 kV (AATCC-134-1996)
Tuft BindPass – 7.8 lbs (ASTM-D-1335)
Dimensional StabilityPass – Max. 2% change (AACHEN)
Indoor Air Quality (V.O.C.)Pass – No VOC Detected (ASTM-D5116-10)
Impact Sound Insulation∆Lw = 31 dB
Sound Absorptionαw = 0,30 (H)
Hz 125 250 500 1000 2000 4000
αs 0.04 0.06 0.43 0.23 0.30 0.42
Flammability
– Radiant PanelPass – Class II (ASTM E 648-17)
– Pill TestPass – 8 (ASTM-D-2859)
– Smoke DensityPass – Max. 450 (ASTM-E-662)
Colourfastness
– to lightExcellent – 5 (AATCC-16E)
– to wet crocking4 (AATCC-165)
– to dry crocking3 (AATCC-165)
– to ozoneExcellent – 5 (AATCC-129)
Lifetime Anti-shock Carpet Warranty
Ideal for Heavy Contract Use.
The subfloor should be dry, smooth, flat, dust-free and resistant to compression and load-bearing. The seams may remain visible to the eye and this should be accepted as an inherent characteristic of carpet tiles. Due to dye lot variations, actual colour may vary slightly from the samples. Chair pads are recommended to prevent premature wear of carpet.
Environment
The design and production of True Ace Tile conforms to the ISO 14001:2004 Environmental Management System and complies with environmental regulations.

As a responsible manufacturer and to minimize our carbon footprint, a majority of our excess production materials are recycled in-house resulting in a minimum of 10% recycled content in our tile backing. Ace Tile does not contain any PVC in its manufactured materials and packaging.

Ace Tile is an environmentally friendly “green” carpet.
